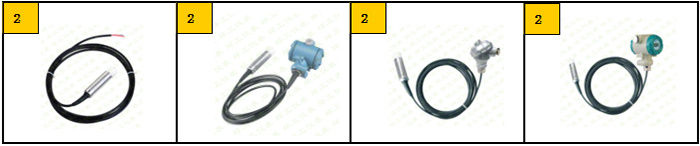

PB860CNN Level TransmitterBack to list
下一篇：没有了
上一篇： Level sensor
- Accuracy: 0.5%F S
- Measuring range: 0…5m to 0…1500m
- Linearity: superior to 0.2%F S
- Temperature drift: <superior to ±0.03%F S/℃
- Stability: superior to 0.5%F S for 1 year
- Response time: 10mS
- Power supply: 12 to 36VDC
- Output：4…20mADC
- Load resistance: 0 ~600Ω
- Liquid temp: -10…60℃
- Compensated temp: -10…60℃
- Storage temp: -45…125℃
- Installation position: direct into the bottom of the liquid
- Housing material: 304 stainless steel or 316 stainless steel
- Diaphragm material: 316L stainless steel
- Breathing cable material: polythene or PTFE
- Weight: Stainless steel pipe(G1): about 300g
Junction box(G3):above
- Gross weight(G): G=G1+G2*length(m)+G3
- Power consume: <5W(24VDC)
