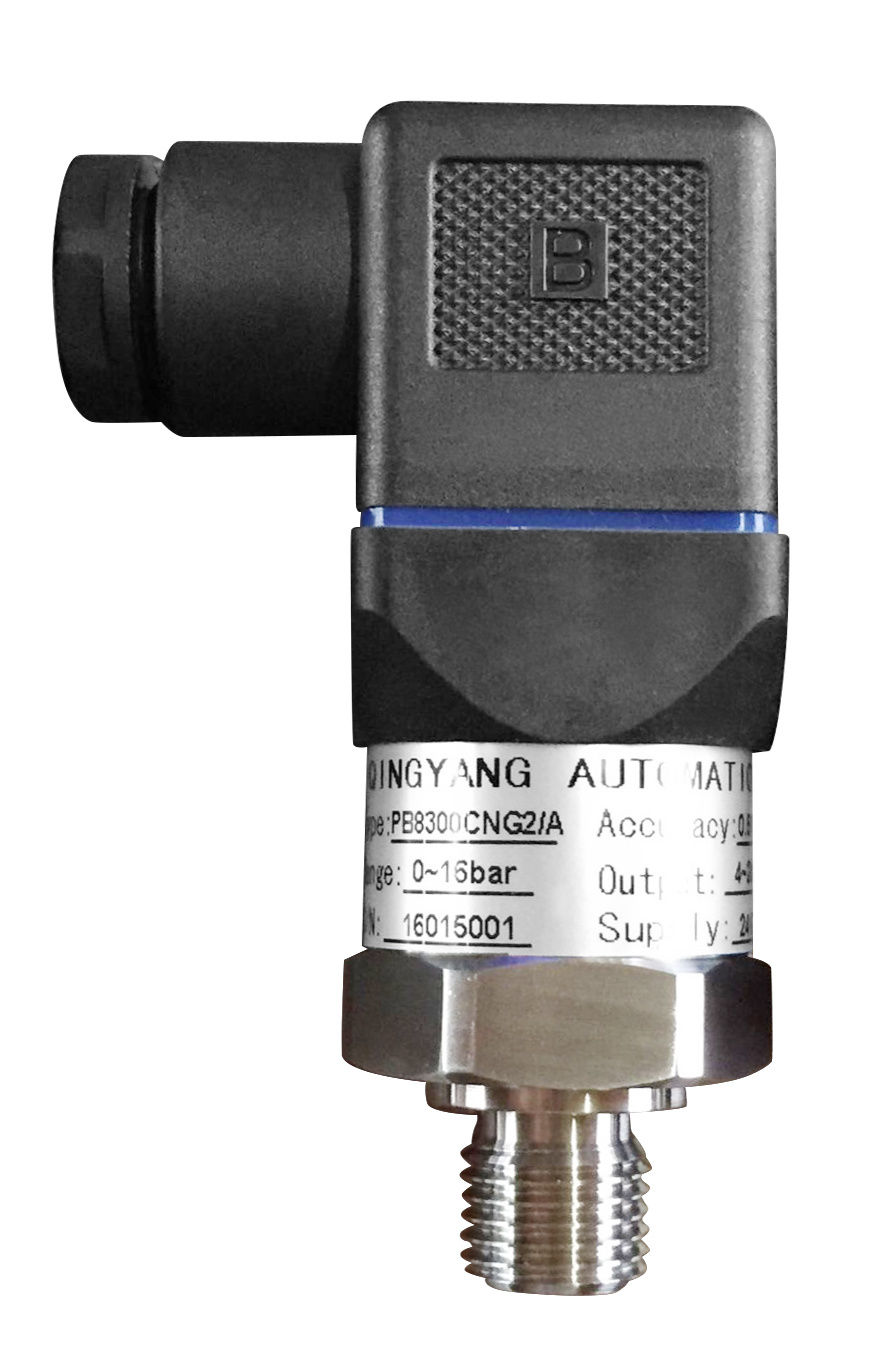

PB8300CNG2/WBack to list
PB8300 diffusion silicon pressure transmitter series stainless steel cylinder shell, terminal box for international general DIN43650 hersman junction box, is made of nylon.General protection grade, because of its delicate appearance, mainly suitable for indoor and form a complete set of machinery and equipment, widely used in all kinds of gas, liquid and steam pressure, liquid level automatic detection and control, wide measuring range, high precision, good stability, reliable performance, easy installation and use, etc, with the reverse polarity protection, lightning protection performance is good, radio frequency interference resistance ability.
● Industrial process control
● Light industry machinery
● Water conservancy, water and electricity, power plants
● Other automatic control and detection of fingerprint
● Petrochemical industry, chemical industry
● Environmental protection and water treatment
● Constant pressure water supply
● Wide measuring range
● With reverse polarity protection and current limiting protection
● Can be flameproof feature
● High precision, high stability, high reliability
● Zero and span continuous adjustable
● Power supply, output, two wire
● Accuracy: 0.25%FS,0.5%FS
● Measuring range: -1...0...800bar
● Power supply: 24VDC(12 to 36 VDC)
● Output: 4-20mA
● Overload: 150%FS
● Burst pressure: 300%
● Protection: IP65
● Operating temp: -20 to +85 deg C
● Sroring temp: -40 to +125 deg C
● Process connection: G1/4(1/4BSP),1/4NPT,(customized)
● Wetted parts: 304 stainless steel
● Diaphragm material: 316SS
● Weight: about 400g
