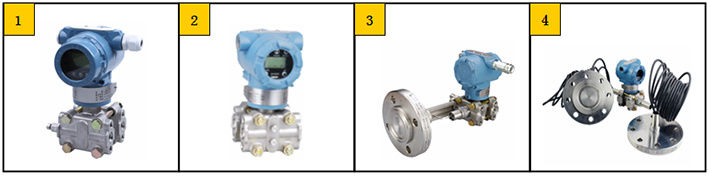

SPB/SST Capacitive transducer
下一篇：SST/SPB Single flange differential pressure transmitter
上一篇：PB7001NM1





SPB and SST series capacitive transducer has the advantages of novel design principles, variety complete specifications, installation is simple, intrinsically safe explosion-proof, etc.Especially in the high precision, small volume, light weight, strong resistance to vibration, easy to adjust, long-term stability is high, the one-way overload protection characteristics well.
SPB and SST series capacitive transducer, including pressure, differential pressure, absolute pressure, flow, playmate varieties, such as its option, signal system, installation completely consistent with the rest of the world products, and we also implement the "IEC standards, and price advantage obviously, is the best choice for your ideal.

●  Wide application used for pressure, differential pressure, liquid level and flow measurement
●  Digital accuracy: ± 0.05%
●  Simulation accuracy: ±0.075%, ±0.1%
●  Whole performance: ±0.25% f. S
●  Stability: 0.25%/ 60 months
●  Range: 100:1
●  Measurement rate: 0.2 S
●  Miniaturization (2.4 kg) stainless steel flange, easy to install
●  Process connection compatible with other products, to achieve the best measurement
●  Achieved excellent cold and thermal stability
●  Using 16 computer intelligent transmitter
●  4 ~ 20 ma, with digital signal based on HART protocol, the remote control
●  Support to the field bus and based on the control technology to upgrade



  • Accuracy: ±0.25% to ±0.075%
  • Ambient Temp effect/28℃
    Scale ratio from 1:1 to 10:1 : ≤±0.2%
    Minim scale(≤1.5Kpa): ±0.5%
  • Influence of pressure:
  • Zero error（can eliminate under static pressure）：
    Static pressure: 0 to 13.7Mpa, ±0.2%/6.9Mpa
                 Over 13.7Mpa, ±0.5%/6.9Mpa
                 13.7Mpa, ±0.5%/6.9Mpa
  • Full scale error: ±0.25%/6.9Mpa
  • Stability
    60months, 0.25%F S, 28℃
    Max pressure :6.9Mpa, scale for 1:1
  • Place influence
    Move less than 250Pa on zero,no influence for scale
  • General performance
    ±0.25%(scale of 1:1, 28℃ changeable,6.9Mpa)
  • Vibration influence(except minim scale)
    Measure random axis < ±0.1%F S(15 to 2000Hz)
  • Influence of power supply:effect ≤0.05%/V
  • Isolation and reverse polarity protection
No arc light under 50Hz,100Vpp
No damage when reverse connection under 24VDC
  • Power supply:12…45VDC
  • Ambient Temp:－20℃…85℃
  • Storage Temp:－40℃…104℃
  • Relative humidity:0…90%
  • Diaphragm material: 316L, Hastelloy C, Monel,Ta, stainless steel ,optional
  • Ingress protection: IP67
  • Fill fluid: silicone oil, Glyceride and water
